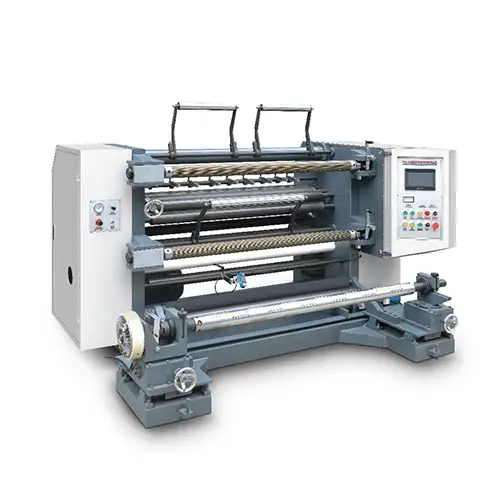

ZY-MCFQ Micro-Computer Vertical Slitting&Rewinding Machine

Time:2017-5-14Author:adminClick:3113

Feautre
This machine is suitable for slitting and rewinding such various roll materials as BOPP, PET, CPP, CPE, PVC, aluminum foil and paper, etc. and can cut edge. separate and cut material according to different requirements during production. This machine is a kind of both vertical and horizontal slitting & rewinding machine, unwinding & rewinding shaft and located in front and back position of machine. independent master control panel. more flexible and even easier operation. Automatic EPC for unwinding, photocell is suitable for tracking the edge and color of transparent material.Equipped with magnetic powder brake for unwinding tension control. Magnetic clutch control for rewinding tension control. It can be equipped with rim charge conveying or rewinding device (which can be selected on order). Automatic meter

Type

ZY-CFQ1100

ZY-CFQ1300

Max. Width of Roller

1100mm

1300mm

Max.Dia. Of Mother Roller

Φ600mm

Φ600mm

Max. Rewinder Dia.

Φ450 mm

Φ450 mm

Final Roll Width

30-1100mm

30-1300mm

Slitting Speed

5-210m/min

5-210m/min

Error of EPC

﹤±0.5mm

﹤±0.5mm

Total Power

3kw

3kw

Machine Weight

1500kg

1800kg

Machine Size

2250×1350×1300mm

2450×1350×1300mm
