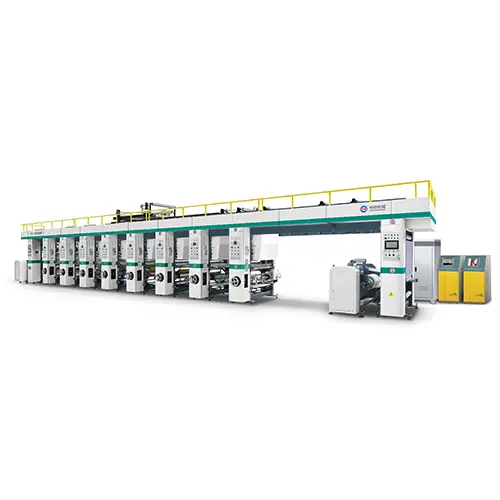

ZY-D Series Computer Rotogravure Printing Machine (Seven Vector Motor)

Time:2017-5-13Author:adminClick:3227

Application
This machine is  suitable  for  multi-color  once-through continuous printing for such roll film materials with excellent printing performance as Glass Paper、 BOPP, PET, PVC, PE, aluminum foil and paper, etc.


1、 Every control module of the automatic color register system is equipped with microprocessor and can correct the deviation of color register quickly and accurately. 2、 Main motor with inverter speed control.
 3、 Turret un/rewinding section, non-stop material splicing.
4、 Unwinding and in-feed section with inverter speed control system and close loop tension control system.
5、 Rewinding and out-feed section with inverter speed control system and close loop tension control system.
6、 Closed oven and independent heating hot air blowing system, automatic constant temperature system.
7、 Pneumatic impressing system and pneumatic doctor blade system
8、 Diaphragm-type pneumatic ink auto circulating system
9、 Inflatable air shaft for unwinding / rewinding material loading
10、 Printing linear speed and meter counting display
11、 Shaft less printing cylinder loading device, printing cylinder is fixed by shaft-less air chuck.
12、 Option: Web video

 Type

ZY-850D

ZY-1050D

ZY-1250D

Max.Material Width

850mm

1050mm

1250mm

Printing Width

800mm

1000mm

1200mm

Max.Printing Speed

150m/min

150m/min

150m/min

Max. Rewind&Unwind Dia.

Φ650

Φ800

Φ800

Material Roller Inner Dia.

φ76

φ76

φ76

Printing Cylinder Dia.

φ120-φ330

φ120-φ330

φ120-φ330

Accuracy of Registration

±0.1mm

±0.1mm

±0.1mm

Tension Control Range

1-30kg

1-30kg

1-30kg

Heater Power of Oven

150kw

170kw

190kw

Total Power

180kw

205kw

225kw

Machine Weight

28000kg

30000kg

32000kg

 Machine Size

L18000×W3800×H3100

L18000×W4000×H3100

L18000×W4200×H3100
