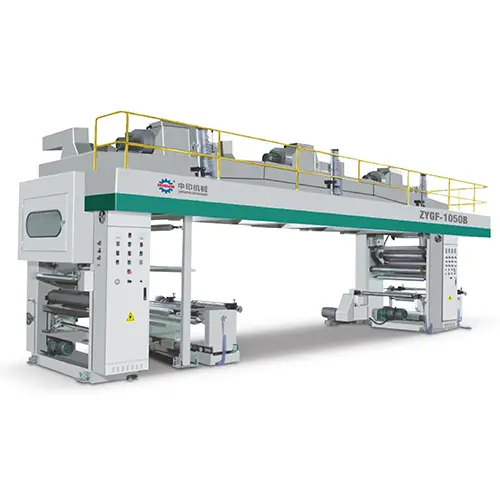

ZYGF-B Series Economical Laminating Machine

Time:2017-5-14Author:adminClick:4877

Application
This machine is suitable for the double-layer or multiple-layer lamination of such roll film material as BOPP, PET, nylon, CPP, CPE, aluminum foil and paper, etc.


Application

1. Domestic two vector motor closed loop auto-tension synchronous control system
2. Anilox roller with doctor blade for coating, various of anilox rollers available for different coating amount.
3. Turret type unwinding station with EPC and auto splicing system, high speed non-stop shaft exchange (special separated single shaft available for aluminum foil laminating)
4. Turret type rewinding station with EPC and auto splicing system with pre-driver, high speed non-stop shaft exchange.
5. Movable doctor blade with pneumatic back pressure
6. Three independent constant temperature section drying system with separated heating station and hot air in feeding. Temperature is controlled automatically.
7. Pneumatic lifting drying chamber and operating platform for web passing, active synchronous running leading roller inside drying chamber.
8. Pre-heating before laminating, water cooling roller for laminated web.
9. Inflatable Air Shaft for web loading/unloading
10. Three rollers nip laminating method, laminating pressure more even to ensure higher peel strength.

Type

ZYGF-850B

ZYGF-1050B

ZYGF-1250B

Laminating Width

830mm

1030mm

1230mm

Max.Material Width

800mm

1000mm

1200mm

Max.Printing Speed

130m/min

130m/min

130m/min

Raw Material Dia.

Φ600

Φ600

Φ600

Paper Core Dia

φ76

φ76

φ76

Unwind Tension

0-25kg

0-25kg

0-25kg

Rewind Tension

0-30kg

0-30kg

0-30kg

Tension Control Range

1-30kg

1-30kg

1-30kg

Heater Power

65kw

75kw

85kw

Total Power

95kw

115kw

135kw

Machine Weight

7000kg

8000kg

9000kg

Machine Size

9500×3700×4500mm

9500×3900×4500mm

9500×4100×4500mm
