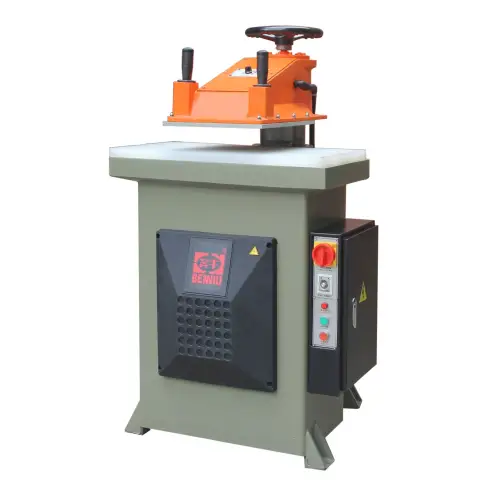

X626-12/16/20T hydraulic swing arm cutting machine

Time:2017-4-9Author:adminClick:2856


Application


Feature: It is mainly used for the forming cutting of fur, paper, artificial leather and some textile material .It is featured by its flexibility, convenience and speed.

Parameter

Model

XL626-12

XL626-16

XL626-20

Pressure

12T

16T

20T

Stroke

75mm

75mm

75mm

Working  area

400X760mm

480X900mm

500X1000mm

Pressing Plate size

340X400mm

370X480mm

370X500mm

Power

1.5hp

2hp

2hp

N.W.

600kg

700kg

800kg

Dimension

850X750X1400mm

970X800X1500mm

1070X950X1500mm

Package    size

950X850X1570mm

1100X900X1560mm

1170X1050X1700mm

Oil

50kg

60kg

70kg
