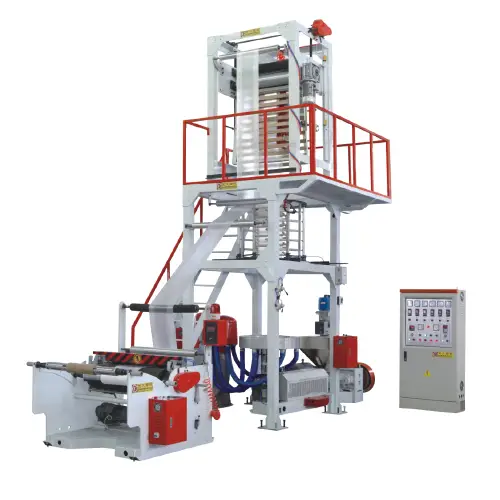

SJ-45/SJ-50/SJ-55 HDPE/LDPE FILM BLOWING MACHINE SERIES
Model |
SJ-45 |
SJ-50 |
SJ-55 |
||||||||||
Features |
Raw Material |
HDPE, LDPE, LLDPE; Virgin and Recycled |
|||||||||||
Film Width |
400mm |
600mm |
800mm |
||||||||||
Output |
25Kgs |
35Kgs |
45Kgs |
||||||||||
Film Thickness |
0.008mm-0.15mm |
||||||||||||
Power supply |
380V, 3Phase, 50Hz |
||||||||||||
Weight |
1300kg |
1400kg |
1600kg |
||||||||||
Dimension |
5×2.3×4M |
5×2.3×4M |
5×2.5×4.5M |
||||||||||
Extrusion Unit |
Screw&Barrel Diameter |
45mm |
50mm |
55mm |
|||||||||
Screw&Barrel L/D ratio |
28:1; 30:1 or 32:1 |
||||||||||||
Motor |
11KW |
11KW |
15KW |
||||||||||
Gearbox |
133 |
133 |
146 |
||||||||||
Die Head Type |
Fixed Die Head |
||||||||||||
Die Size |
50/80 |
60/100 |
120/160 |
||||||||||
Heating |
11KW |
11KW |
13KW |
||||||||||
Blower |
2.2KW |
||||||||||||
Film Taking-up Tower |
Upper Tower Type |
Rise and Fall |
|||||||||||
Roller Length |
700mm |
700mm |
900mm |
||||||||||
Roller Working Way |
Opened and Tightened By Air Cylinders |
||||||||||||
Take Up Motor |
1.5KW |
||||||||||||
Winding Station |
Winder Type |
Single winding station |
|||||||||||
Rollers Length |
700mm |
700mm |
900mm |
||||||||||
Torque Motor |
5N/M |
||||||||||||
Max. Winding Diameter |
600mm |
||||||||||||
Control Panel |
Temperature control |
5 zone |
|||||||||||
Electronics |
Top China Brand |
||||||||||||
Inverter Capacity |
11KW/1.5KW |
11KW/1.5KW |
15KW/1.5KW |
||||||||||
Optional Equipment |
Hopper loader, Corona |
